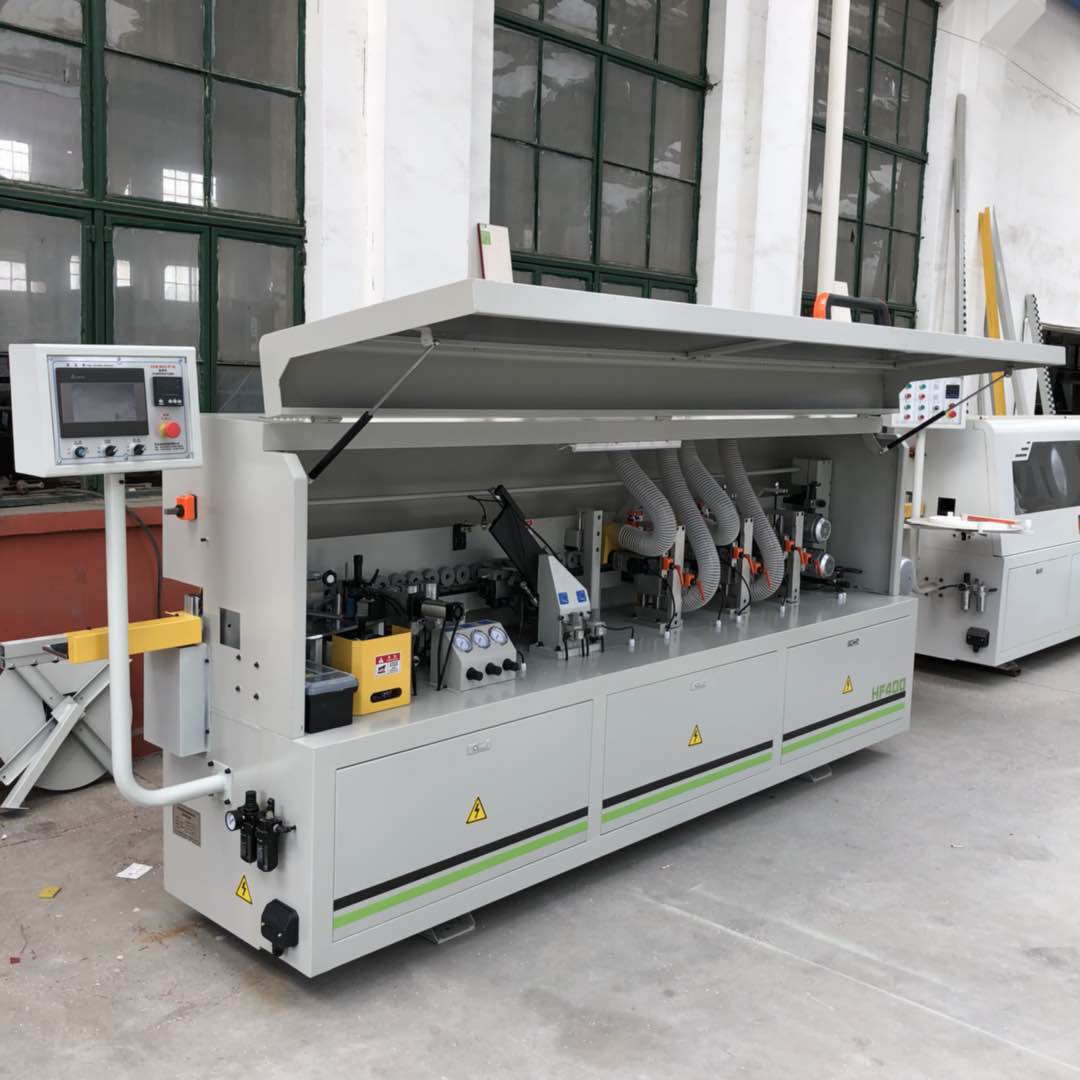

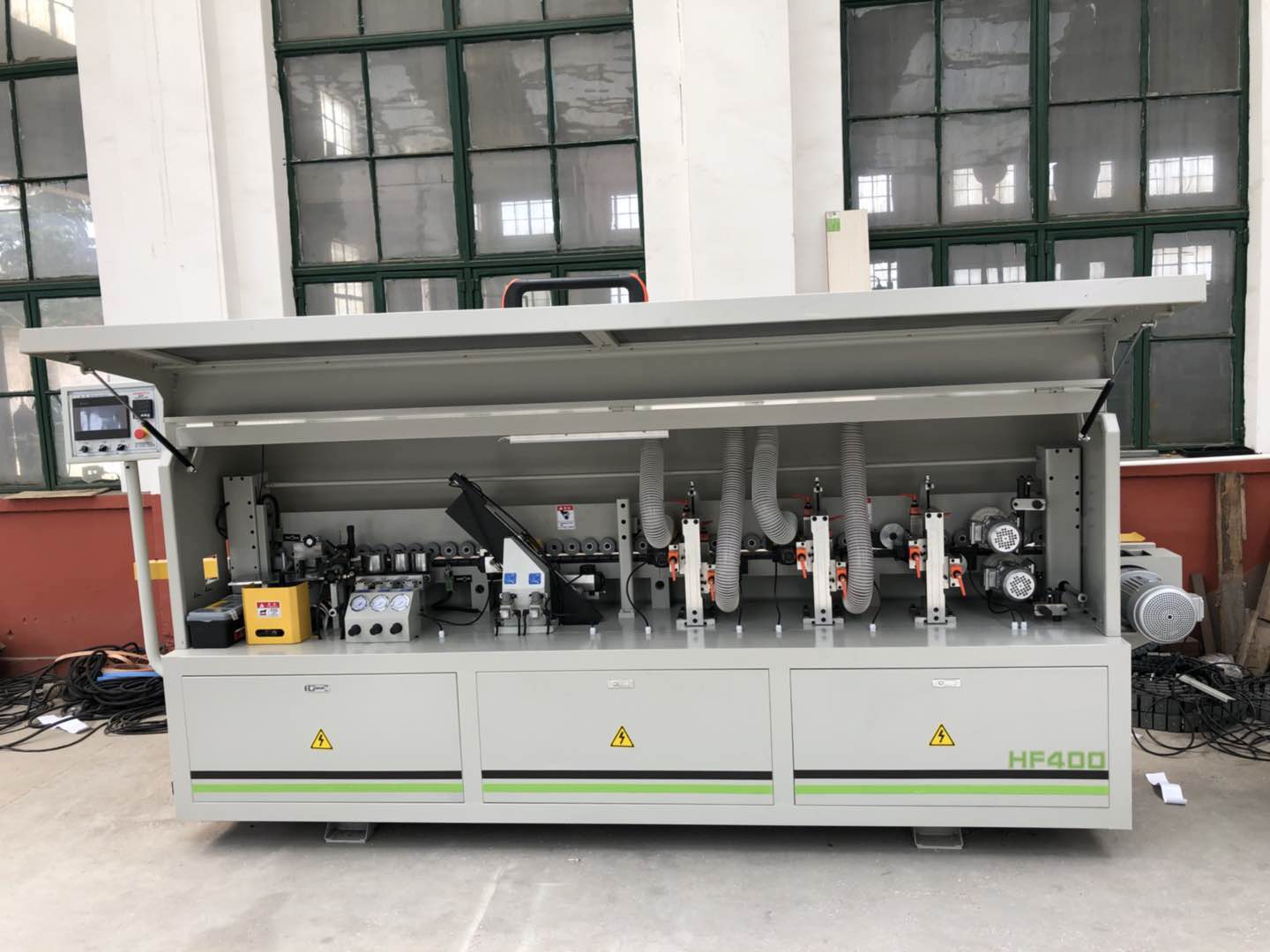

Edge banding machine pictures:
Edge banding machine function:
Edge banding machine parameters:
Rolling edge-enveloping belt thickness | 0.4-3mm |
Rolling edge-enveloping belt height | 12-45mm |
Workpiece thickness | 10-40mm |
Minimum width | 80mm |
Minimum lengthh | 160mm |
Delivery speed of workpiece | 11.79m/min |
Air pressure | 0.7Mpa |
0.3m³/min. | |
Edge-removing equipment motor | 0.75kw*2 12000r/min 200Hz |
Polish equipment motor | 0.18kw*2 1400r/min 50Hz |
2.3kw | |
Heater | 0.12kw |
Workpiece thickness | 0.75kw |
Rubber axle motor | 0.37kw |
Toral power capacity | 5.4kw |
Machine tool dimension | 2700mm*800mm*1500mm |
Net mass | 850kg |
Edge banding machine parts pictures:
Edge banding machine factory:
